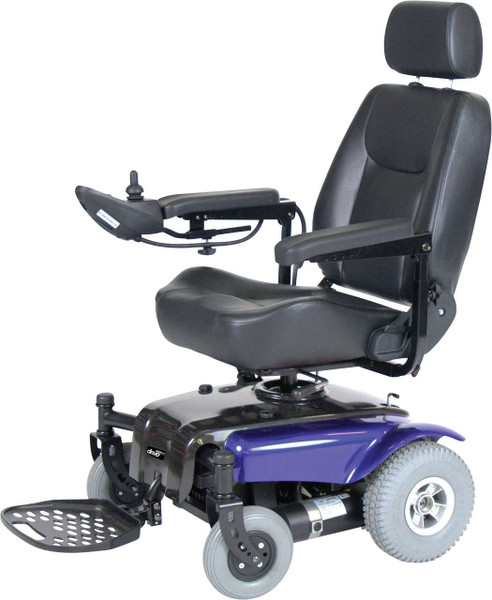

Product Overview
Specifications:
- Height adjustable swivel seat features fold down backrest
- Seat back reclines and features adjustable headrest
- Adjustable length controller mount
- Armrests are padded, adjustable and removable
- Available with 18", 20" or 22” width Captain's Seat
- Optional swing-away controller arm (Item #AA4100) sold separately
- Adjustable, flip-up footplate
- Positioning belt included
- Optional elevating legrests (requires Item #AE2500 & Item #LK3JELR) sold separately
- Programmable controller
- Flat-free, non-marking tires
- Easy free-wheel operation
- Anti-tip wheels
| HCPCS | K0823 |
|---|---|
| Weight Capacity | 300 lbs. |
| Top Speed | 4 mph |
| Maximum Range | 15 miles |
| Turning Radius | 31" |
| Climbing Angle | 6° |
| Ground Clearance | 3" |
| Dimensions | 41” (L) x 26” (W) |
| Floor-to-Seat Height | 20" - 23" |
| Captain's Seat Dimensions | 18” (W) x 18” (D) | 20” (W) x 18” (D) |
| Controller | PG VSi 50A |
| Motors (2) | 24V x 320W x 4600 rpm |
| Batteries (pair) | 12V x 35AH (U1) |
| Charger | 5A Offboard |
| Brakes | Electromagnetic |
| Caster Wheels | 8” x 2” Solid |
| Drive Wheels | 10” x 3” Flat Free |
| Base Weight | 97 lbs. |
| Battery Weight | 48 lbs. |
| Seat Weight | 43 lbs. |
| Total Weight | 188 lbs. |
| Warranty on Frame | Lifetime |
| Specification 23 | Warranty on Electronic Controller/Drive Train Components 3 Years |
| Warranty on Batteries | 12 Months |
